WESFORK HELP WITH COORDINATION CHALLENGES
It's all about making things easy, building partnerships, and providing a point of contact.
PT20S/25S/30S/20SLi/25SLi/30SLi
Model
PT20S/25S/30S/20SLi/25SLi/30SLi
Load capacity
2000-3000kg

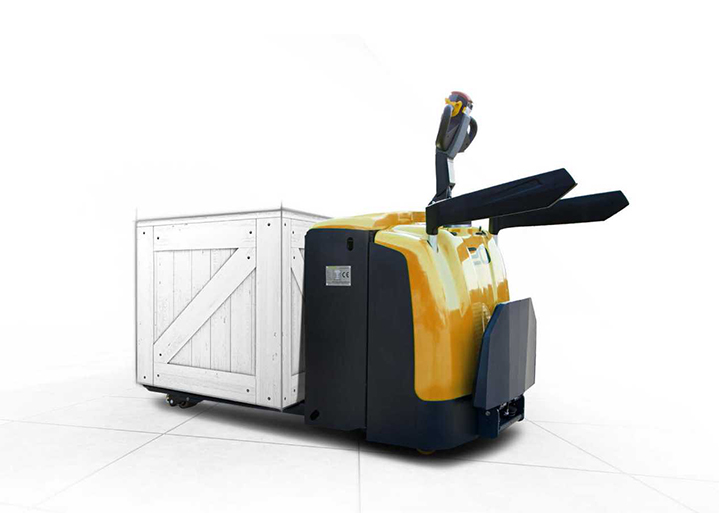

The compact and lightweight body design is suitable for a variety of low-intensity load applications in warehouses or transport applications on trucks with liftgates.
Ideal solution for light load applications.
Built-in charger with a high degree of autonomy.
The function of automatically cutting off the lifting action under low voltage can prolong the life of the battery.
Additional stabilizer wheels ensure stable vehicle handling.
Home / Products / Electric truck / PT20S/25S/30S/20SLi/25SLi/30SLi / PT20S/25S/30S/20SLi/25SLi/30SLi
battery side access
Standard 210Ah lead-acid battery, Optional 340Ah lead-acid battery or 200Ah lithium battery, the power supply can meet the needs of continuous hard work. The slide-on battery allows customers to easily replace the battery.
easy to maintain
All central components can be easily accessed and diagnosed via the CAN bus.

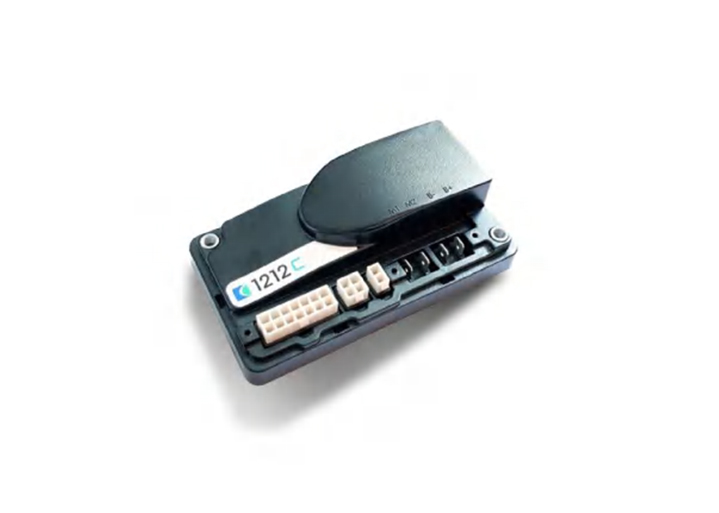

Stable Curtis controllers, sturdy chassis and durable AC motor are guaranteed.
Ac drive technology
The powerful AC drive motor always provides correct and direct corresponding operation. Free maintenance of the system also reduces operating costs
Lifting electronic limit
Equipped with lifting electronic limit, lifting smoothly, no impact, can effectively protect the lifting motor
